高效低壓電動機

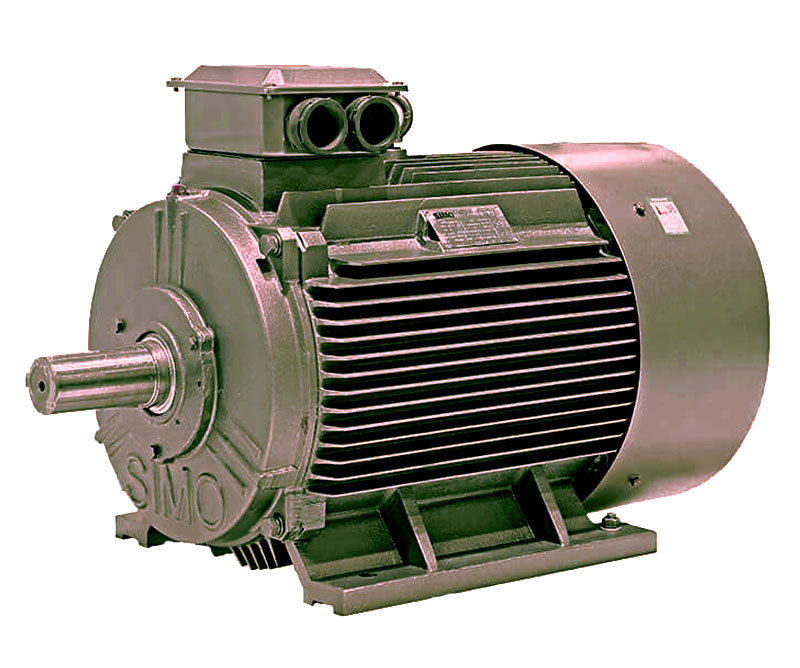

西瑪YE5一級能效三相異步電機|GB18613-2020新國標西瑪電機

在線咨詢

SIMO西瑪電機YE5系列超高效率三相異步電機（YE5series Ultra-high efficiency three-phase asynchronous motor）本系列電動機是我公司自主研發的超高效節能三相異步電動機，冷卻方式為:IC41 GB/T755《旋轉電動機定額和性能》，效率值符合GB18613-2020中1級能效標準，60034-30《單速三相籠型感應電動機能效分級》中的IE5一致。本系列產品能夠完全取 YGM2、YE2、YE3、YE4系列低壓三相異步電動機。

YE5系列超高效三相異步電動機具有性能優良、高效、節能，溫升裕度大，壽命長，性能好，振動小，啟動性能優良，外形美觀，可靠性能高的優點。常用于驅動水泵、風機、壓縮機、傳送機和其他傳機械被應用在節能環保改造、國家水利等項目。

This series of motors are Ultra-high efficiency and energy saving three-phase asynchronous motors independently developed by our company.Cooling method is IC411,meeting GB/T 755 "Rotating Electrical

Machines-Ratings and Performance"and JB/T13299-2017"Specification for YE5 series(IP55) High Efficiency Three-phase Induction Motor(Frame size 63-355)".Its efficiency value complies with the level 1 energy efficiency standard in GB 18613-2012 and is consistent with the lE4 in the international standard IEC 60034-30 "Energy

Efficiency Class of Single-speed Three-phase Cage Induction Motors".This series of products can completely

replace the obsolete products of low-voltage three-phase asynchronous motorslikeYYGM,YGM2,YE, YE3,YE4

series.

This series of motors have the advantages of excellent performance,high efficiency,energy saving, large

temperature rise margin,long life,low vibration,excellent starting performance,nice appearance and high reliability, which are commonly used to drive water pumps,fans,compressors,conveyors and other transmission machinery in energy conservation and environmental protection transformation projects,national water conservancy projects,etc

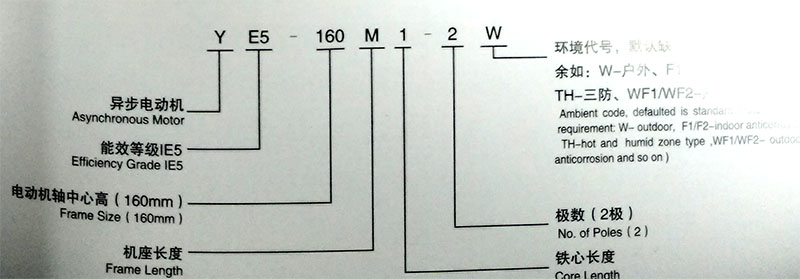

電動機型號說明 MotorType Description

YE5一級能效西瑪電機常規機座號和安裝方式

YE5-250M-2/55KW，YE5-250M-4/55KW，IP55/IP56電機
YE5-132S-4/5.5KW，YE5-160L-6/11KW，B3臥式電機
YE5-132M1-6/4KW，YE5-250M-2/55KW新一代電機
YE5-200L2-6/22KW，YE5-355M-4/250KW率節能電機
YE5-132S2-2/7.5KW，YE5-315S-4/110KW超節能電機
YE5-315S-2/110KW，YE5-160M2-2/15KW三相異步電機
YE5-315L2-4/200KW，YE5-132S1-2/5.5KW節能電機
YE5-225M-6/30KW，YE5-225S-4/37KW三相異步電機
YE5-355M1-6/160KW，YE5-200L1-2/30KW，F(xiàn)級或H級絕緣電機
YE5-315S-2/110KW，YE5-280M-4/90KW，B3臥式電機
YE5-250M-4/55KW，YE5-225M-6/30KW，節能電機
YE5-200L2-6/22KW，YE5-160L-2/18.5KW，超超率電機
YE5-160M2-2/15KW，YE5-315M-4/132KW，新一代電機
YE5-132S-4/5.5KW，YE5-280M-6/55KW，三相異步電機
YE5-355M-4/250KW，YE5-225M-2/45KW，超節能電機
YE5-315M-6/90KW，YE5-200L-4/30KW，超率電動機
YE5-280S-2/75KW，YE5-132S2-2/7.5KW，率節能電機
YE5-225S-4/37KW，YE5-132S-4/5.5KW，B3臥式電機
YE5-160L-6/11KW，YE5-355L-4/315KW，超率電動機
YE5-132S2-2/7.5KW，YE5-355M-2/250KW，IP55/IP56電機
YE5-355M-2/250KW，YE5-355M-4/250KW，率節能電機
YE5-315M-4/132KW，YE5-355M1-6/160KW，超節能電機
YE5-280M-6/55KW，YE5-315L2-2/200KW，超超率電機
YE5-225M-2/45KW，YE5-132S2-2/7.5KW，率節能電機
YE5-180L-4/22KW，YE5-160M-4/11KW，新一代電機
